STARLINK Starlink is the world’s first and largest satellite constellation using a low Earth orbit to deliver broadband capable of supporting streaming, IoT, video calls and more. Leveraging advanced satellites and user hardware coupled with deep experience with both spacecraft and on-orbit operations, Starlink delivers high speed, low-latency internet to users all over the world. Most satellite internet services come from single geostationary satellites that orbit the planet at 35,786km. As a result, the round trip data time between user and satellite – also known as latency – is high, making it nearly impossible to support streaming, large downloads, IoT, video calls, or other high data rate activities. Starlink is a constellation of thousands of satellites that orbit the planet much closer to Earth, at about 550km, and cover the entire globe. Because Starlink satellites are in a low orbit, latency is significantly lower – around 40 ms vs 600+ ms.

Package Weight: 16.25kg (35.8lbs)

Package Dimensions: 679 x 613 x 191mm (26.7 x 24.1 x 7.5 in)

Antenna: Electronic Phased Array

Field of View: 140°

Orientation: Fixed Dish Weight: 5.9kg / 13lbs without Cable 8.1kg / 17.9lbs with 25m / 82ft Cable

Environmental Rating: IP56

Operating Temperature: -30°C to 50°C (-22°F to 122°F)

Wind Speed: Survivable: 280kph+ (174mph+)

Power Consumption Average: 110 – 150 W Snow Melt Capacity: Up to 40mm / hour (1.5in / Hour)

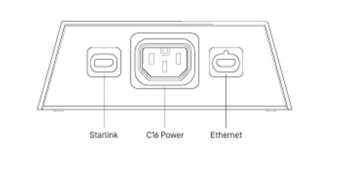

User LAN: RJ45 Cable

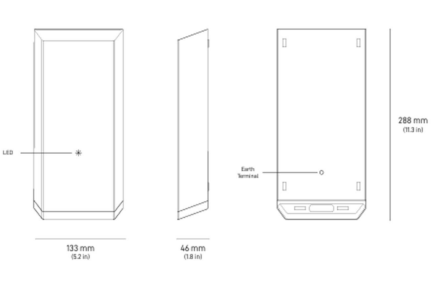

Environmental Rating: IP66

Operating Temperature: -30°C to 50°C (-22°F to 122°F)

Weight: 1.5kg (3lbs)

Grounding: Dedicated Earth Terminal

Power Specifications: 100-240v ~ 2.5A 50 – 60Hz

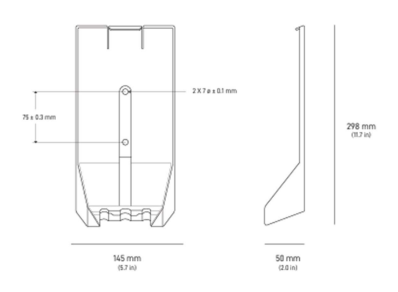

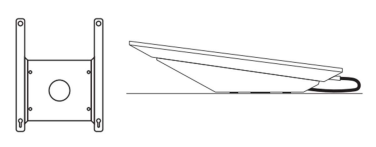

Mounting: Included Mount
